УСТАНОВКА

Поместите стиральную машину вблизи места ее использования без подставки и упаковки.

Осторожно, чтобы не повредить шланг и электрический провод, перережьте пластиковый хомут на

задней стенке стиральной машины.

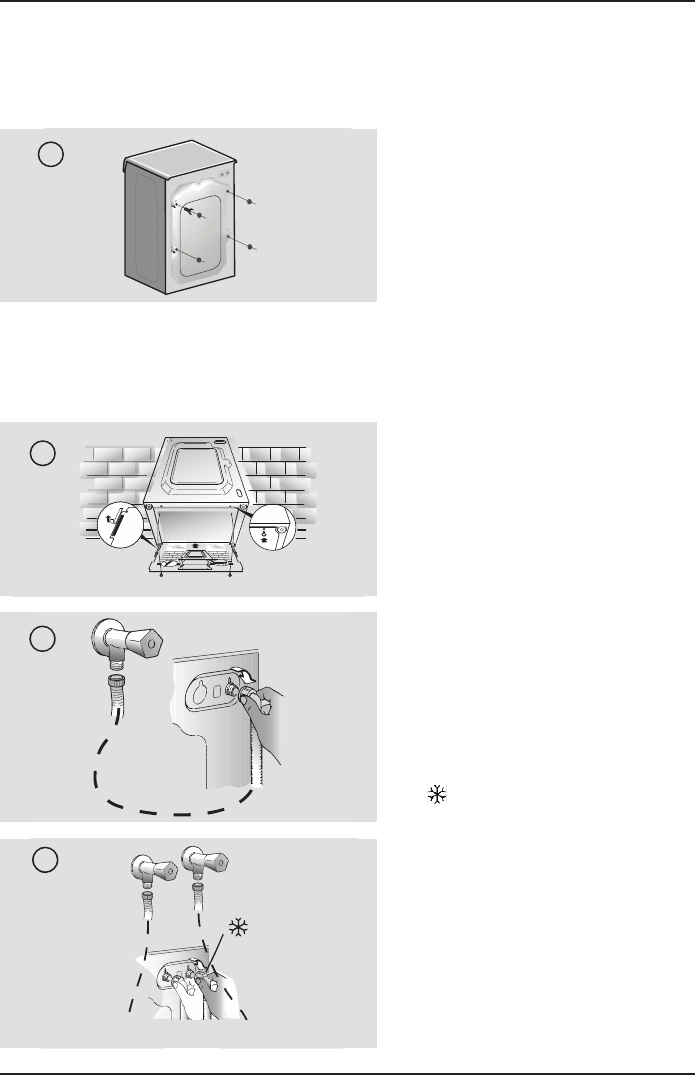

Открутите 4 болта (А) на задней стенке и

извлеките 4 траспортировочные втулки (В),

рис. 1. Закройте 4 отверстия специальными

заглушками из комплекта стиральной ма-

шины.

ПРИМЕЧАНИЕ! СОХРАНИТЕ ТРАНСПОРТИРОВОЧНЫЕ БОЛТЫ ДЛЯ СЛУЧАЕВ ПЕ-

РЕМЕЩЕНИЯ И ПЕРЕВОЗКИ СТИРАЛЬНОЙ МАШИНЫ.

В СЛУЧАЕ ЕСЛИ ТРАНСПОРТИРОВОЧНЫЕ ВТУЛКИ УПАЛИ ВНУТРЬ, НАКЛОНИТЕ

СТИРАЛЬНУЮ МАШИНУ ВПЕРЕД ДЛЯ ИХ ИЗВЛЕЧЕНИЯ.

Закрепите лист гофрированного материала

на дне, как показано на рис. 2.

Подсоедините шланг (рис. 3) к

водопроводному крану. Используйте новый

заливной шланг идущий в комплекте.

Повторное и спользование старого

заливного шланга не допускается!

НЕКОТОРЫЕ МОДЕЛИ МОГУТ ВКЛЮЧАТЬ В

СЕБЯ НЕСКОЛЬКО ФУНКЦИЙ:

ПОДКЛЮЧЕНИЕ К ГОРЯЧЕЙ / ХОЛОДНОЙ

ВОДЕ (рис.4)

Для экономии электроэнергии прибор

можно подключить к холодной и горячей

воде.

Подсоедините серый шланг к холодной

воде , красный шланг к горячей воде.

Если стиральная машина подключается

только к холодной воде, то некоторые

программы могут запускаться с задержкой,

т.к. происходит дополнительный нагрев

воды.

АКВАСТОП (рис. 5)

Устройство, блокирующее подачу воды

в случае протечки. В окне (А) появляется

красная отметка, шланг должен быть

заменен. Для замены шланга нажмите

на кнопку блокиратора (В) и открутите

фиксирующую гайку.

EN

7

2. INSTALLATION

 Release the power chord and

drain hose from the securing

clip at the rear of the machine.



Remove the

2

or

4

transportation

screws

(A)

on the back and

remove the

2

or

4

flat washers,

rubber bungs and plastic spacer

tubes

(B)

as illustrated

in figure 1

.



If the washing machine is built-in,

unscrew the

3

or

4

transportation

screws

(A)

and remove the

3

or

4

flat washers, rubber bungs and

plastic spacer tubes

(B)

.



During the removal of the screws

occasionally spacer tubes fall

inside the product, these can be

remove by tilting the product forward

and recovering them from the floor

or inside the base of the machine.

 Cover the open transportation

screw holes with the 2 or 4

plastic caps included in the

instruction bag.

Place the corrugated plastic

sheet, found on top of the

appliance during the unpacking

process, into the base of the

appliance as shown in figure 2

(according to the model,

consider version A, B or C).

A

A

A

A

B

B

B

B

1

3

2

1

3

1

2

A

C

B

2

WARNING:

keep packaging materials

away from children.

EN

7

2. INSTALLATION

 Release the power chord and

drain hose from the securing

clip at the rear of the machine.



Remove the

2

or

4

transportation

screws

(A)

on the back and

remove the

2

or

4

flat washers,

rubber bungs and plastic spacer

tubes

(B)

as illustrated

in figure 1

.



If the washing machine is built-in,

unscrew the

3

or

4

transportation

screws

(A)

and remove the

3

or

4

flat washers, rubber bungs and

plastic spacer tubes

(B)

.



During the removal of the screws

occasionally spacer tubes fall

inside the product, these can be

remove by tilting the product forward

and recovering them from the floor

or inside the base of the machine.

 Cover the open transportation

screw holes with the 2 or 4

plastic caps included in the

instruction bag.

Place the corrugated plastic

sheet, found on top of the

appliance during the unpacking

process, into the base of the

appliance as shown in figure 2

(according to the model,

consider version A, B or C).

A

A

A

A

B

B

B

B

1

3

2

1

3

1

2

A

C

B

2

WARNING:

keep packaging materials

away from children.

10

 Connect the water hose to the water

supply tap (fig. 3) only using the hose

supplied with the appliance (do not

reuse old hose-sets).

 SOME MODELS may include one or

more of the following features:

 HOT&COLD (fig. 4):

water mains connection settings with hot

and cold water for higher energy savings.

Connect the grey tube to the cold water

tap and the red one to the hot water

tap. The machine can be connected to

the cold water tap only: in this case, some

programs may start a few minutes later.

 AQUASTOP (fig. 5):

a device located on the supply tube that

stops water flow if the tube deteriorates;

in this case, a red mark will appear in the

window “A” and the tube must be

replaced. To unscrew the nut, press the

one-way lock device "B".

 AQUAPROTECT – SUPPLY TUBE WITH

GUARD (fig. 6):

Should water leak from the primary

internal tube "A", the transparent

containment sheath "B" will contain water

to permit the washing cycle to complete.

At the end of the cycle, contact the

Customer Service Centre to replace the

supply tube.

 The washing machine should be installed

in its final position such that the water fill

hose is not kinked or trapped. The

corrugated drain hose should be inserted

into suitable drain pipe of between 50 cm

and 85 cm height above the floor using

the curved drain hose support. If an under

sink connection is used the drain hose

must be routed above the sink overfill

opening to prevent back siphoning. Care

must be taken to avoid kinking or trapping

the drain hose (fig. 7).

3

1

4

B

A

5

B

A

6

Setting

Hydraulic connections

10

 Connect the water hose to the water

supply tap (fig. 3) only using the hose

supplied with the appliance (do not

reuse old hose-sets).

 SOME MODELS may include one or

more of the following features:

 HOT&COLD (fig. 4):

water mains connection settings with hot

and cold water for higher energy savings.

Connect the grey tube to the cold water

tap and the red one to the hot water

tap. The machine can be connected to

the cold water tap only: in this case, some

programs may start a few minutes later.

 AQUASTOP (fig. 5):

a device located on the supply tube that

stops water flow if the tube deteriorates;

in this case, a red mark will appear in the

window “A” and the tube must be

replaced. To unscrew the nut, press the

one-way lock device "B".

 AQUAPROTECT – SUPPLY TUBE WITH

GUARD (fig. 6):

Should water leak from the primary

internal tube "A", the transparent

containment sheath "B" will contain water

to permit the washing cycle to complete.

At the end of the cycle, contact the

Customer Service Centre to replace the

supply tube.

 The washing machine should be installed

in its final position such that the water fill

hose is not kinked or trapped. The

corrugated drain hose should be inserted

into suitable drain pipe of between 50 cm

and 85 cm height above the floor using

the curved drain hose support. If an under

sink connection is used the drain hose

must be routed above the sink overfill

opening to prevent back siphoning. Care

must be taken to avoid kinking or trapping

the drain hose (fig. 7).

3

1

4

B

A

5

B

A

6

Setting

Hydraulic connections

10

 Connect the water hose to the water

supply tap (fig. 3) only using the hose

supplied with the appliance (do not

reuse old hose-sets).

 SOME MODELS may include one or

more of the following features:

 HOT&COLD (fig. 4):

water mains connection settings with hot

and cold water for higher energy savings.

Connect the grey tube to the cold water

tap and the red one to the hot water

tap. The machine can be connected to

the cold water tap only: in this case, some

programs may start a few minutes later.

 AQUASTOP (fig. 5):

a device located on the supply tube that

stops water flow if the tube deteriorates;

in this case, a red mark will appear in the

window “A” and the tube must be

replaced. To unscrew the nut, press the

one-way lock device "B".

 AQUAPROTECT – SUPPLY TUBE WITH

GUARD (fig. 6):

Should water leak from the primary

internal tube "A", the transparent

containment sheath "B" will contain water

to permit the washing cycle to complete.

At the end of the cycle, contact the

Customer Service Centre to replace the

supply tube.

 The washing machine should be installed

in its final position such that the water fill

hose is not kinked or trapped. The

corrugated drain hose should be inserted

into suitable drain pipe of between 50 cm

and 85 cm height above the floor using

the curved drain hose support. If an under

sink connection is used the drain hose

must be routed above the sink overfill

opening to prevent back siphoning. Care

must be taken to avoid kinking or trapping

the drain hose (fig. 7).

3

1

4

B

A

5

B

A

6

Setting

Hydraulic connections
